NE15 Wheat Grain Silo Bucket Elevator Equipment
Bucket Elevator Product Descriptions:
Bucket elevator is suitable for vertical transmission of powder, granular and small block and less abrasive bulk materials, which has a small requirement for the type of materials, characteristics and block degrees, it can raise powder, granular and bulk materials, and abrasive materials such as grain, coal, cement, crushed ore, etc. It can also raise high temperature products that below 250°C with the max height of 40m.
Bucket Elevator Equipment Technical Parameters:
| Item | Conveying capacity (m³/h) | Hopper | Max aggregate diameter (mm) | Spindle speed (r/s) | Material bulk density (t/m³) | Max hoisting height (m) | Power (kw) |
| Volume (L) | Bucket chain pitch (mm) | Hopper width (mm) | Bucket speed (m/s) |
| NE15 | 10~15 | 2.5 | 203.2 | 250 | 0.5 | 40 | 15.54 | 0.6~2.0 | 35 | 1.5~4 |
| NE30 | 18. 5~31 | 7.8 | 304.8 | 300 | 0.5 | 55 | 16.45 | 0.6~2.0 | 50 | 1.5~11 |
| NE50 | 35~60 | 14.7 | 304.8 | 300 | 0.5 | 60 | 16.45 | 0.6~2.0 | 45 | 1.5~18.5 |
| NE100 | 75~110 | 35 | 400 | 400 | 0.5 | 70 | 14.13 | 0.6~2.0 | 45 | 5.5~30 |
| NE150 | 112~165 | 52.2 | 400 | 600 | 0.5 | 90 | 14.13 | 0.6~2.0 | 45 | 5.5~45 |
| NE200 | 170~220 | 84.6 | 500 | 600 | 0.5 | 100 | 10.9 | 0.6~1.8 | 40 | 7.5~55 |
| NE300 | 230~340 | 127.5 | 500 | 600 | 0.5 | 125 | 10.9 | 0.6~1.8 | 40 | 11~75 |
| NE400 | 340~450 | 182.6 | 600 | 700 | 0.5 | 130 | 8.3 | 0.6~1.8 | 30 | 18.5~90 |
| NE500 | 450~550 | 260.9 | 700 | 700 | 0.5 | 140 | 7.1 | 0.6~1.8 | 30 | 30~110 |
| NE600 | 550~660 | 330.2 | 700 | 700 | 0.5 | 150 | 7.1 | 0.6~1.8 | 30 | 37~132 |
| NE800 | 680~830 | 501.3 | 800 | 800 | 0.5 | 165 | 6.2 | 0.6~1.8 | 30 | ~160 |
Vertical Bucket Elevator Working Principles:
Belt bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base. The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.
Grain Bucket Elevator Applications:
1).Metallic and Non-Metallic ores like Bauxite. Coal. Rock products. Sand. Gravel, Cement. Gypsum. Limestone.
2).Food powder like Sugar. Flour. Coffee, Salt, Grain
3).Chemical Processing products like Fertilizers. Phosphates Agricultural Lime. Soda Ash.
4).Pulp and Paper products like,Wood Chips.
Advantages
1).Bucket elevator has less requirement on materials, features and the bulk. It can lift, the powder, granular and bulk materials.
2).The max lifting capacity is 4,600m3/h.
3).Bucket elevator adopts inflow feeding, gravity induced discharge, and use large capacity hopper.
4).The traction parts adopt wear-resistant chains and steel wire belt to extend the service life of the traction parts.
5).Bucket elevator runs smoothly, generally the lifting height is 40m or even higher.
Product Tags:
|
|

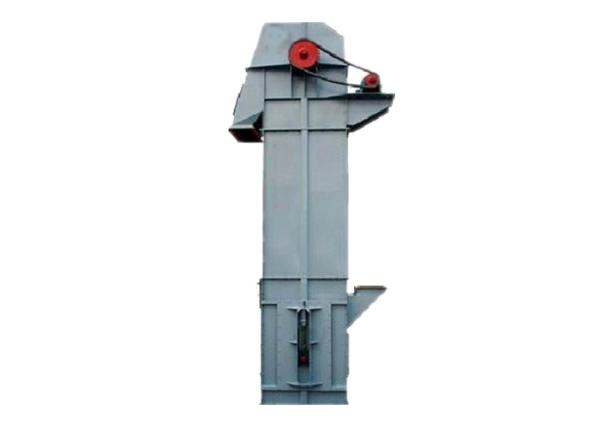

Wheat Grain Silo 15m3/H Vertical Bucket Elevator Images
|
